Black Schaller GTM #45060 Nashville tunematic, with hardware, 2-1/16" string, 2-29/32" post spacing.

• High-quality Tune-o-matic bridge for all Les Paul™* type guitars
• Compatible with post spacings from 74.0 - 74.5 mm
• Features special retainer springs to prevent bridge rattle or string buzz
• Saddles supplied without preconfigured string grooves allowing for individual string spacing
• Saddles are from brass
• Slant angle to be determined by guitarmaker based on scale length and string gauge.

nstallation

non-reverse: intonations screws show to the pickups
reverse: intonations screws show to the tailpiece

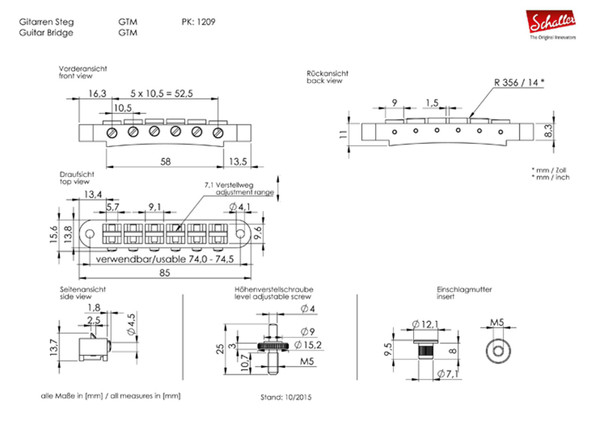

technical specification

distance height adjustment screws 74 - 74,5mm, string spacing E-e 52,5mm, string radius 12“-14“ (usable for fretboard max. 10-16 inch, depending on the notches of the string saddles more outside or inside), minimal G/d string height above body 13,7mm, weight 53g (70g with accessories), for lefty: yes

scope of supply

2 press-in bushings M7 with 2 height-adjustment screws M5 (metric).

For other press-in bushings and height-adjustment screws please see under Bridges/ Replacement Kits and order additionally.
