As Heard on

Various Fender Custom Shop Telecaster® guitars

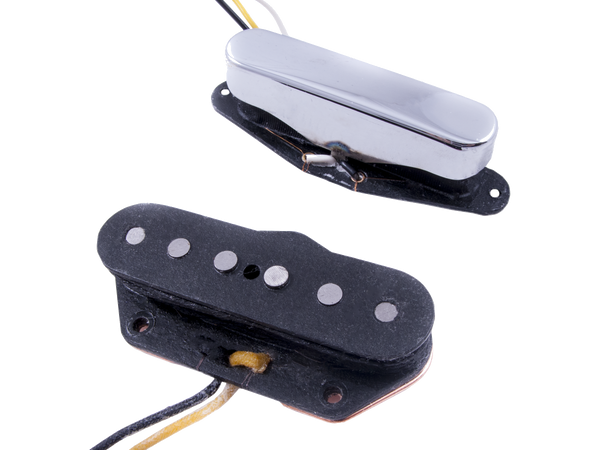

Fender Twisted Tele pickups deliver hot high-output Telecaster guitar tone with a dash of sparkling Stratocaster® guitar character. Each pickup is tailored to its position (neck and bridge) to achieve its individual sonic character. The neck pickup's taller bobbin is designed to accommodate more windings, combined with a slightly shorter bridge pickup bobbin for dark full-bodied midrange.

Tonal Characteristics

• Formvar-coated neck pickup magnet wire adds brightness and glassiness
• Enamel-coated bridge pickup magnet wire delivers warm vintage-style tones
• Flush-mount polepieces produce even string response
• Alnico 5 magnets add more focus and enhanced dynamics

Product Details

• Period-correct cloth output wire and fiber bobbin construction
• Includes nickel/silver neck pickup cover for clear Tele tone

Included Components

Fender Custom Shop Twisted Tele pickups come with all parts needed for installation, including:

• Mounting screws
• Pickup height adjustment tubing
• Wiring diagram
• Wiring harness

Output Rating (Bass/Middle/Treble)

• Neck: 6/5/6
• Bridge: 5/5/6

DC Resistance

• 10.5k ohms

Inductance

• 4.2 henries
• UPC: 885978308651
• Color: Black & Chrome
• Part #: 0992215000

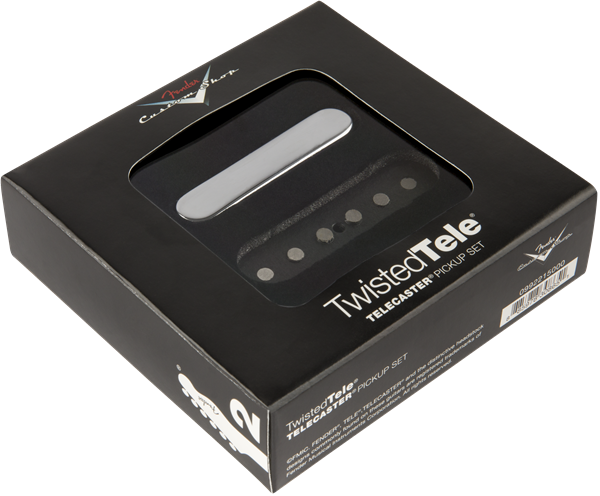

• Description: Fender Twisted Tele® Pickups, Set of 2, Black/Chrome Dimensions
• Height: 0.01
• Length: 5.0
• Volume: 0.022
• Weight: 0.62 Accessories and Clothing Details
• Magnet Type: Alnico 5 Magnets Inductance: Neck: 2.2 Henries, Bridge: 4.2 Henries
• Number of Pickups: 2 per pack Cover Color: Neck: Nickel Cover. Bridge: Black Cover
• DC Resistance: Neck: 5.9K, Bridge: 10.0K
