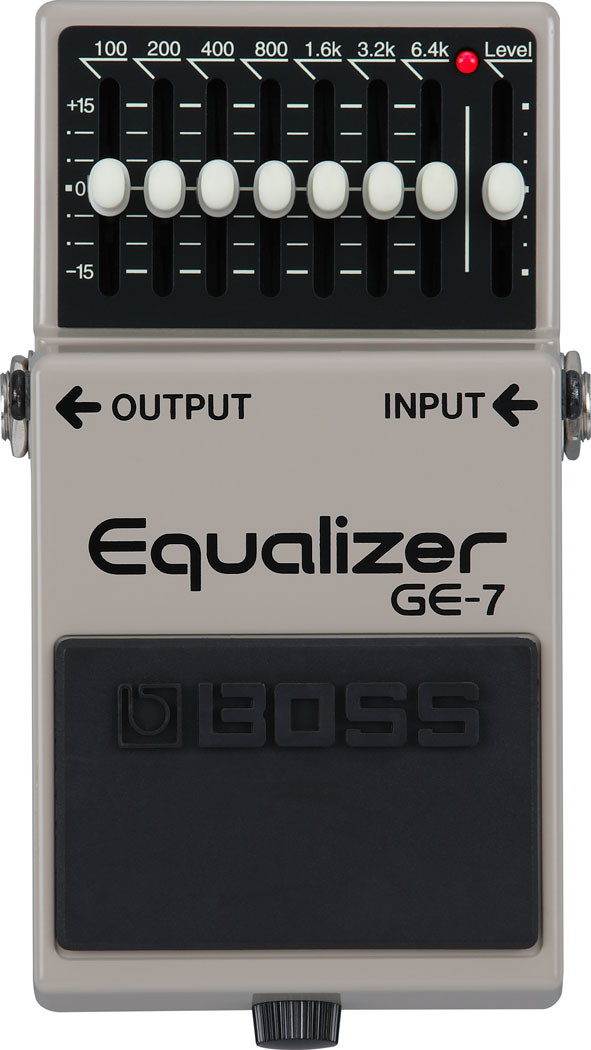

Boss GE7- 7 Band Graphic Equalizer Guitar Pedal

Powerful 7-Band EQ!
Features

The GE-7 Equalizer pedal offers seven bands of EQ ranging from 100Hz to 6.4kHz, ideal for guitar sounds, with boost/cut of +/- 15dB per band. This lets you completely control your sound and eliminate unwanted feedback, particularly when connected after a distortion effect.

• Compact EQ pedal with 7 bands of adjustable EQ sliders
• Allows for boost/cut of up to +/- 15dB per band
• Perfect as a "boost" pedal for solos, creating an alternate sound, or for eliminating feedback
• BOSS 5-year warranty

Nominal Input Level
-20 dBu Input Impedance
1 M ohms Nominal Output Level
-20 dBu Output Impedance
1 k ohms Residual Noise Level
1 k ohms Residual Noise Level
-100 dBu (IHF-A Weighted, Typ.) Variable Range
Equalizer Control: +/- 15 dB, Level Control: +/- 15 dB Connectors
INPUT Jack, OUTPUT Jack, AC Adaptor Jack (DC 9 V) Power Supply
DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor Current Draw
10 mA (DC 9 V) Accessories
Dry Battery 9 V type (6F22/9 V) Option
AC Adaptor (PSA-Series) Size and Weight ( incl. battery )

Width     73 mm     2-7/8 inches
Depth     129 mm     5-1/8 inches
Height     59 mm     2-3/8 inches
Weight     0.5 kg     1 lbs.
